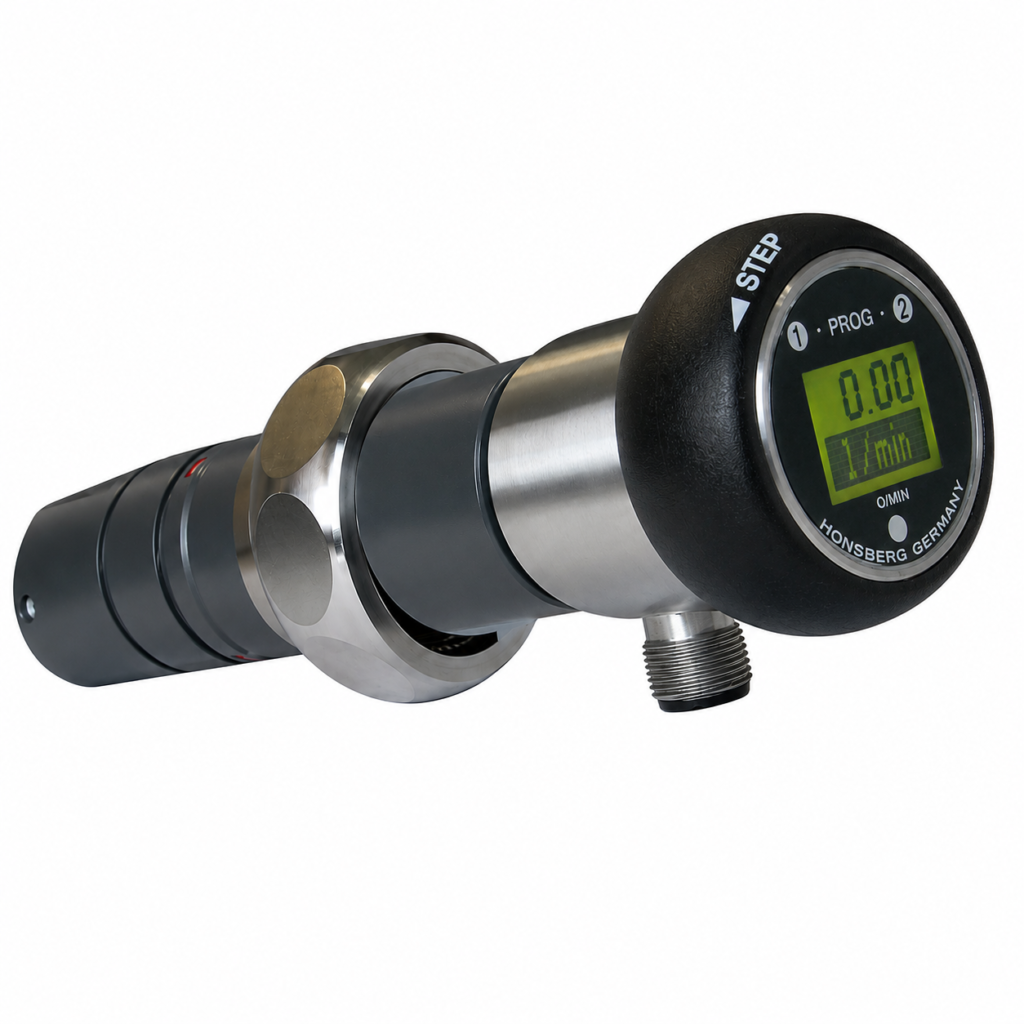

Flow transmitter with LCD OMNI-HD2K
Electronic Flow Transmitter and Switch with LCD Display for Viscosity-Stable Oil Monitoring
Key Features:
🌊 Accurate Flow Measurement
Spring-supported piston with Hall sensor technology provides precise and repeatable flow measurement with low pressure loss.
📟 Backlit Graphical LCD Display
Features a 32 × 16 pixel backlit LCD displaying flow value, engineering units, switching status, and diagnostic messages for easy local monitoring.
Key Features:
⚡ Analog & Dual Switching Outputs
Provides configurable 0/4–20 mA or 0/2–10 V analog output along with two programmable Push-Pull switching outputs supporting both PNP and NPN operation.
🔧 Easy Programming
Menu-driven programming using the rotating programming ring allows easy configuration of switching points, hysteresis, analog output, engineering units, and filter settings.
🛡️ Rugged Industrial Construction
Features a durable metal housing, IP67 protection, M12 × 1 (5-pin) connector, and pressure resistance up to PN 200 (optional PN 500) for demanding industrial applications.
Applications:
🛢️ Hydraulic Systems
Ideal for monitoring oil flow in hydraulic power units and industrial machinery.
⚙️ Lubrication Systems
Ensures reliable lubricant circulation in industrial equipment.
🏭 Industrial Process Automation
Provides continuous flow measurement and switching for manufacturing and production processes.
🧪 OEM & Machine Building
Suitable for integration into industrial machinery, skids, and customized process systems.
Why Choose This Solution?
Accurate Measurement
Reliable and repeatable oil flow monitoring.
Clear LCD Display
Backlit graphical display for easy local indication.
Flexible Outputs
Supports analog output and dual programmable switching outputs.
Industrial Applications
Ideal for hydraulic systems, lubrication circuits, and industrial automation.
