Sensors(PH)

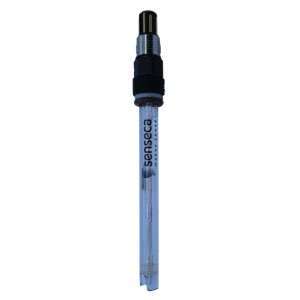

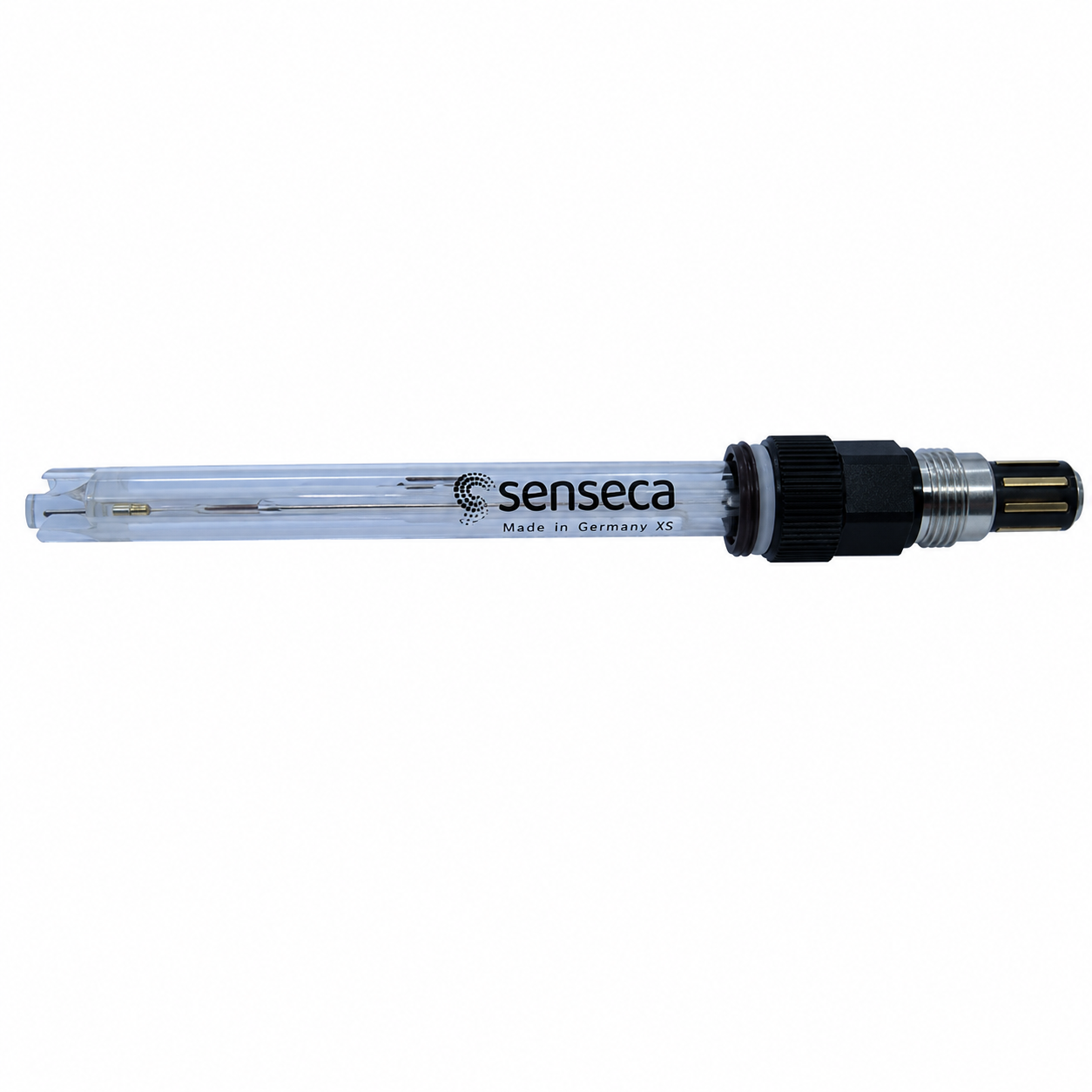

pH combined electrode with optional Pt1000
pH101
- for industrial standard applications
- Plastic shaft, gel electrolyte
- Process connection: PG13.5
- Electrical connection: fixed cable (2m) with BNC connection; S8 or VarioPin industrial plug

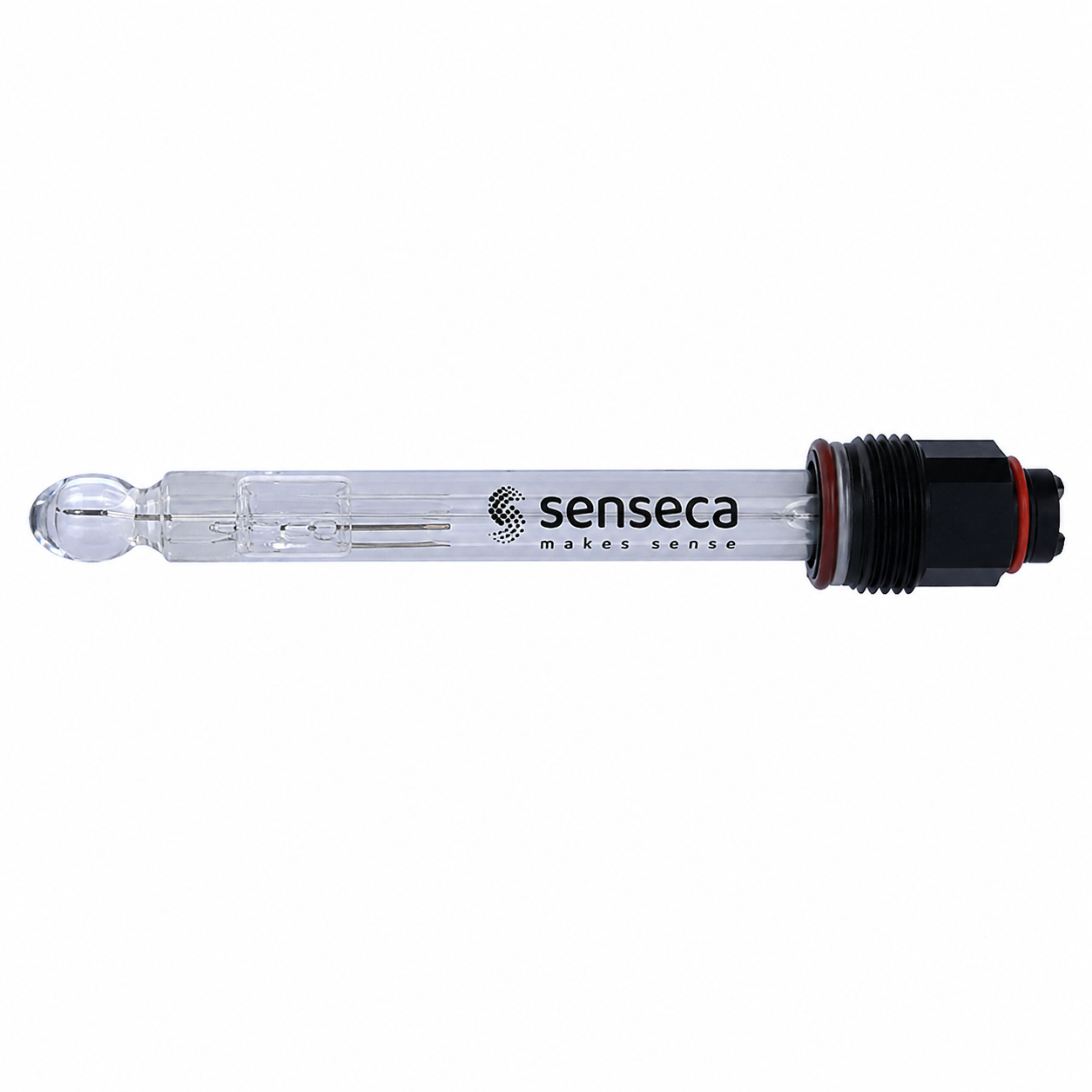

pH combined electrode
pH111
- Suitable for low conductivity, drinking water compliant
- Glass shaft, gel electrolyte
- Process connection: PG13.5
- Electrical connection: S8 industrial plug

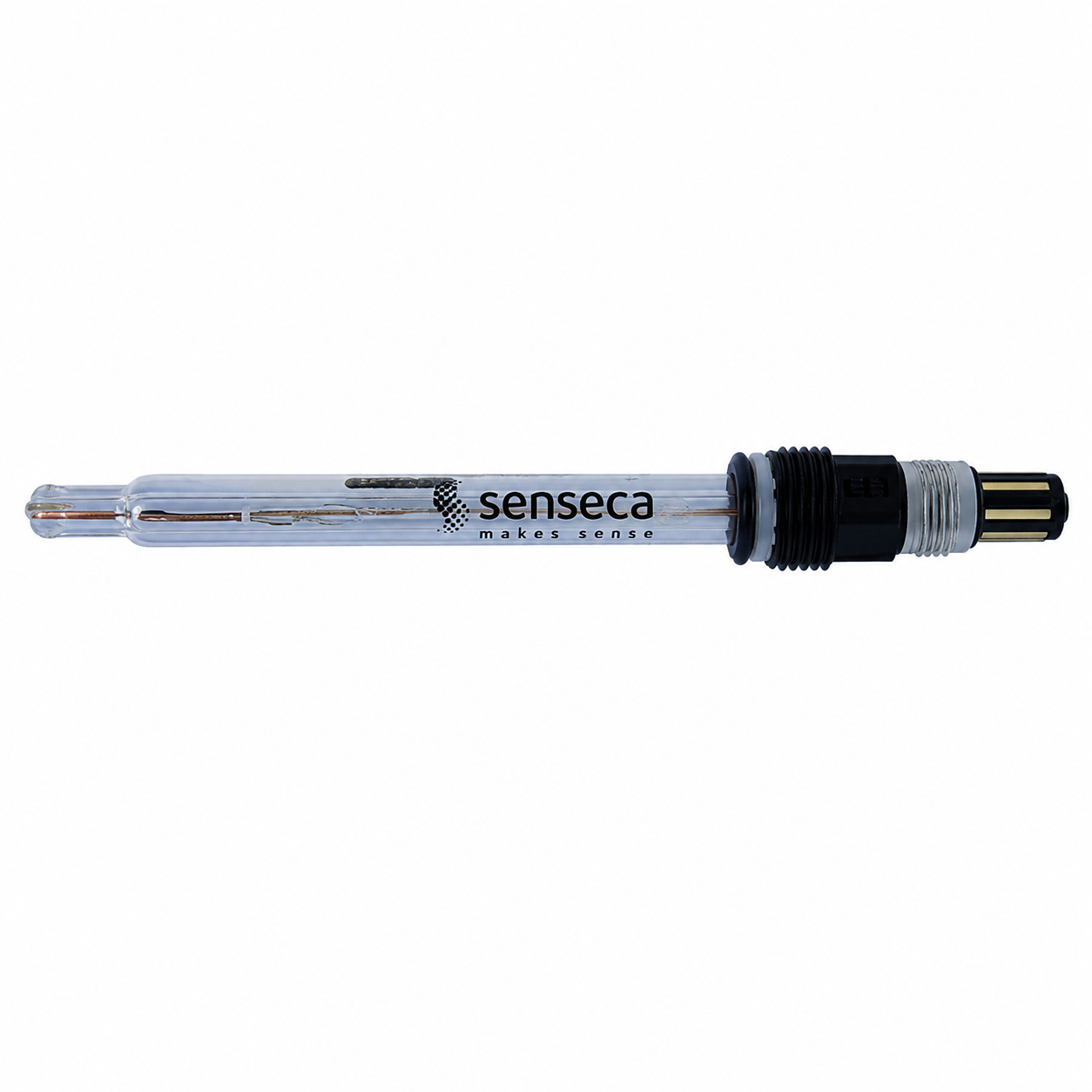

pH combined electrode with Pt1000
pH121
- for higher temperature/pressure requirements
- Glass shaft, gel electrolyte
- Process connection: PG13.5
- Electrical connection: VarioPin industrial plug

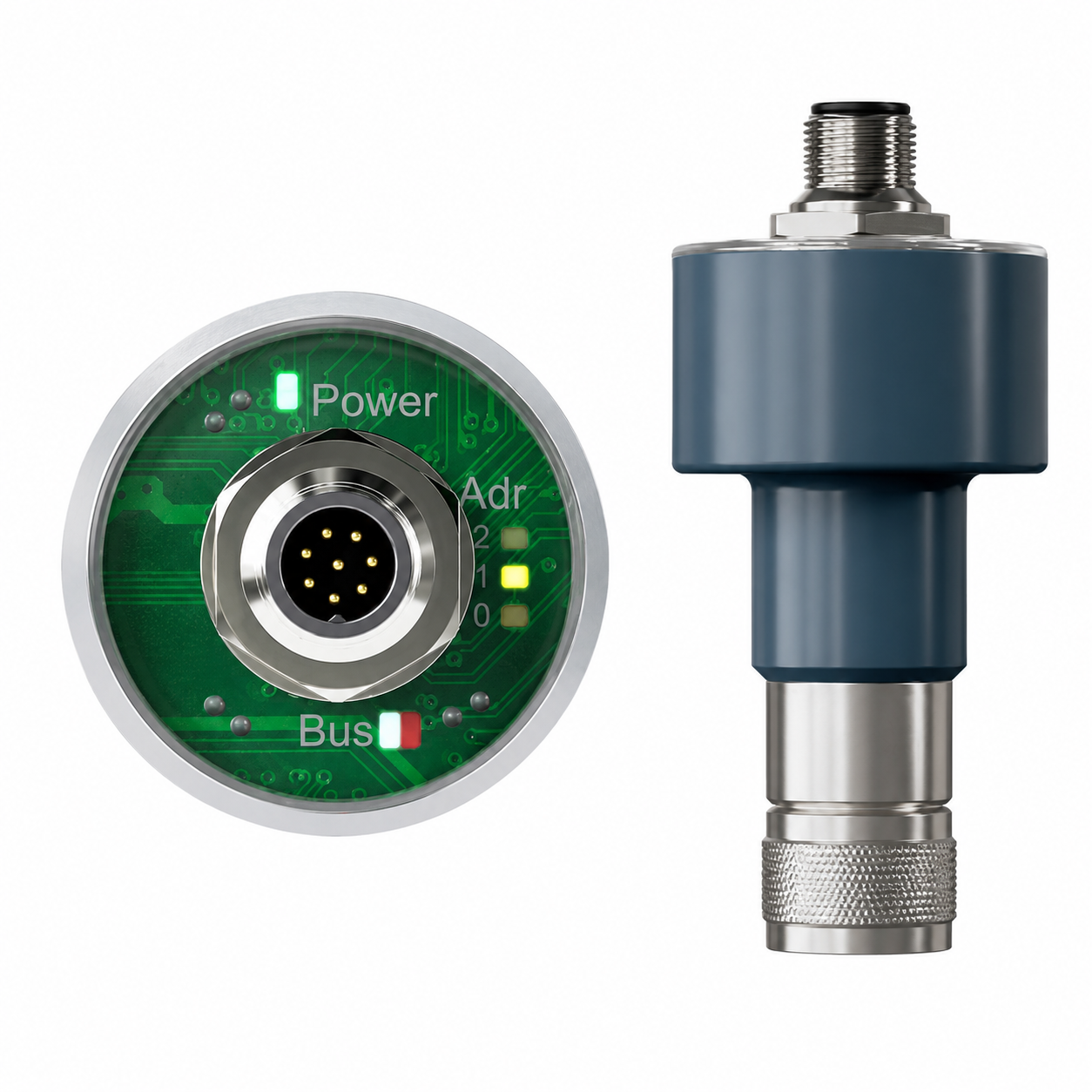

Digital pH / Redox Converter
PHIX
- RS485 Interface with MODBUS RTU-protocol
- for Electrodes with S7/S8 or VarioPin Plug
- Integrated 1- or 2-Point Calibration
- Datalogging

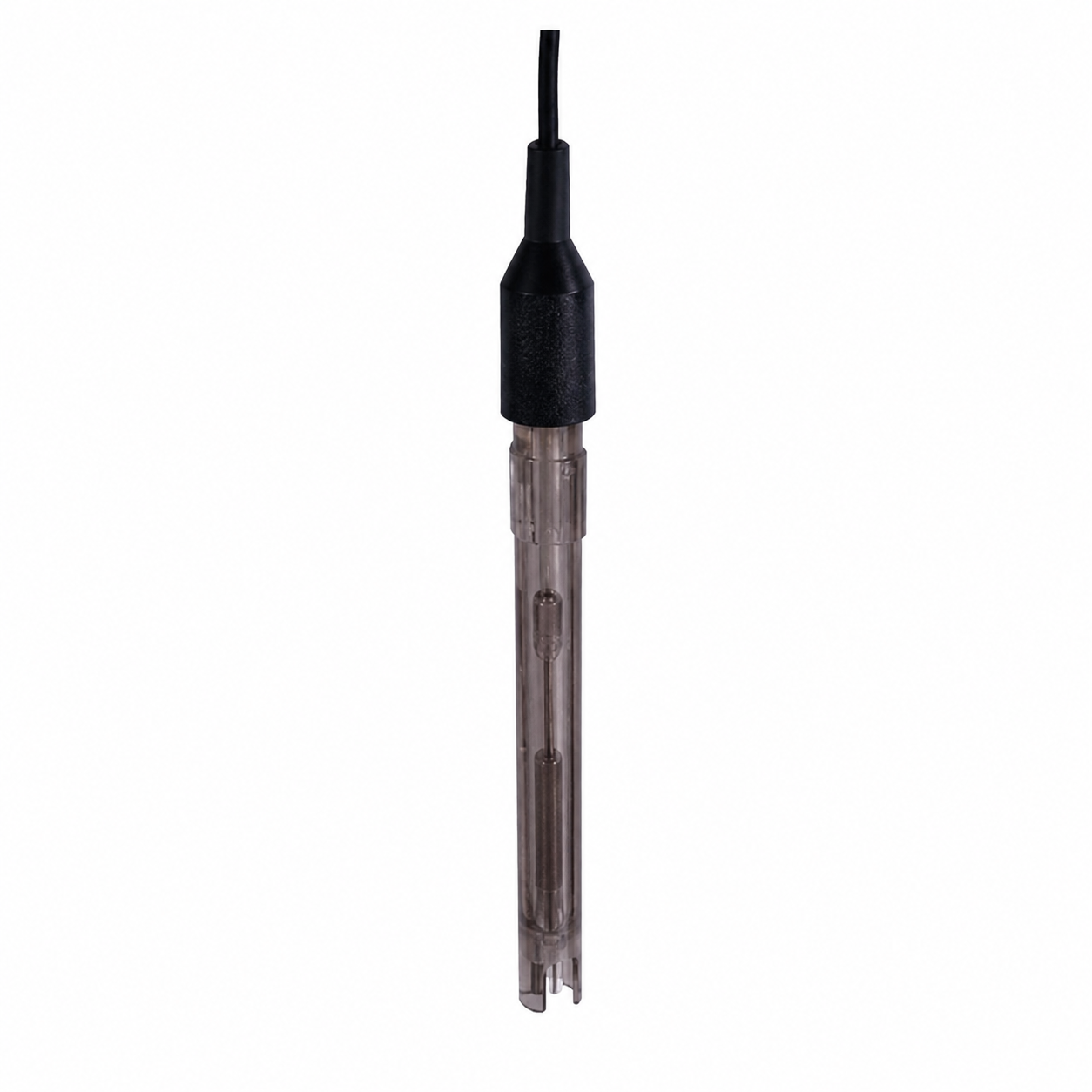

Universal - pH-electrode
GE 100-BNC
- Measuring range: 0 … 14 pH, 0 … 80 °C
- Laboratory and field usage, refillable
- universal and durable
- Cable: 1 m

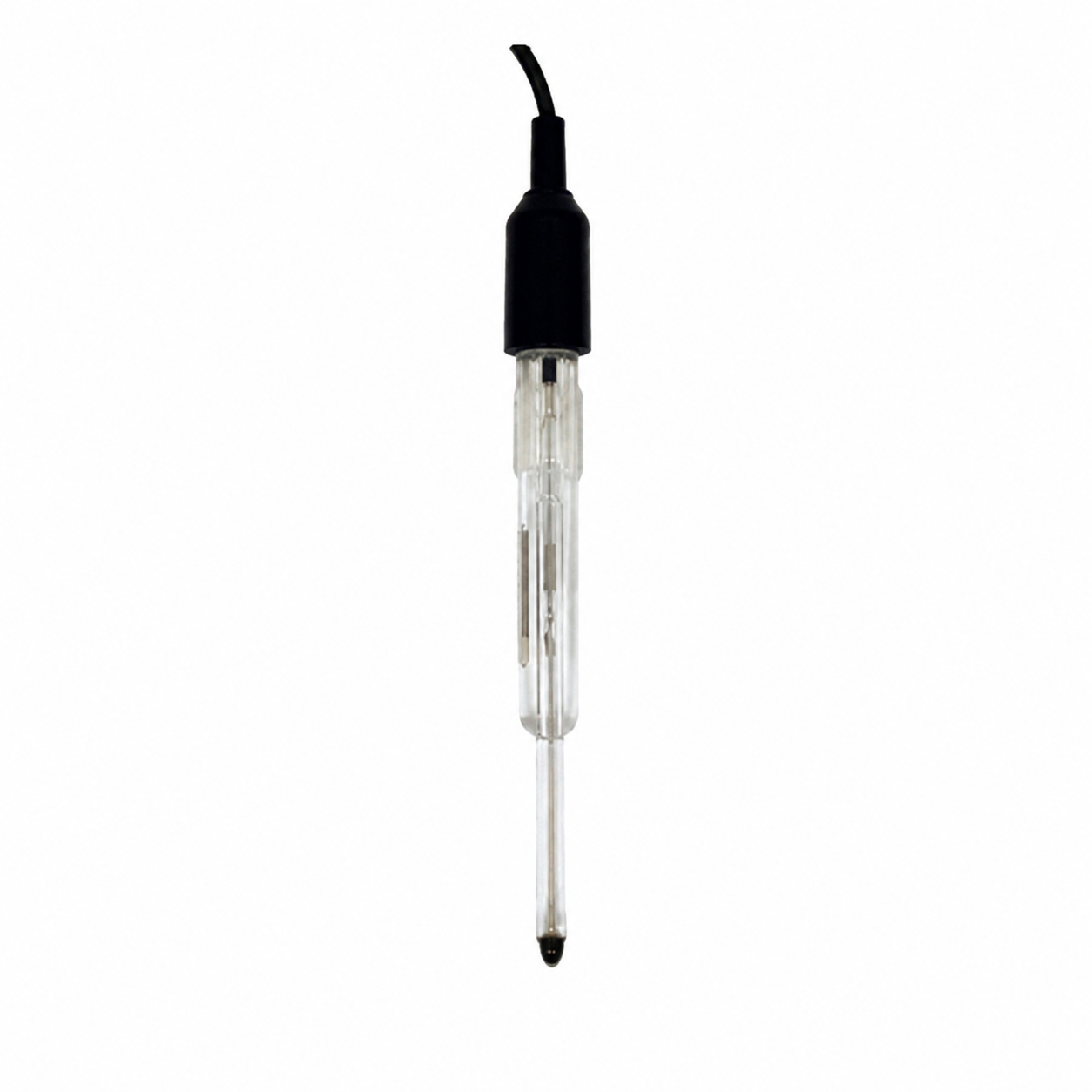

Insertion pH electrode
GE 101-BNC
- Measuring range: 2 … 11 pH, 0 … 60 °C
- for food and soil pH
- Tip Ø 6 mm, small sample volume
- Cable: 1 m

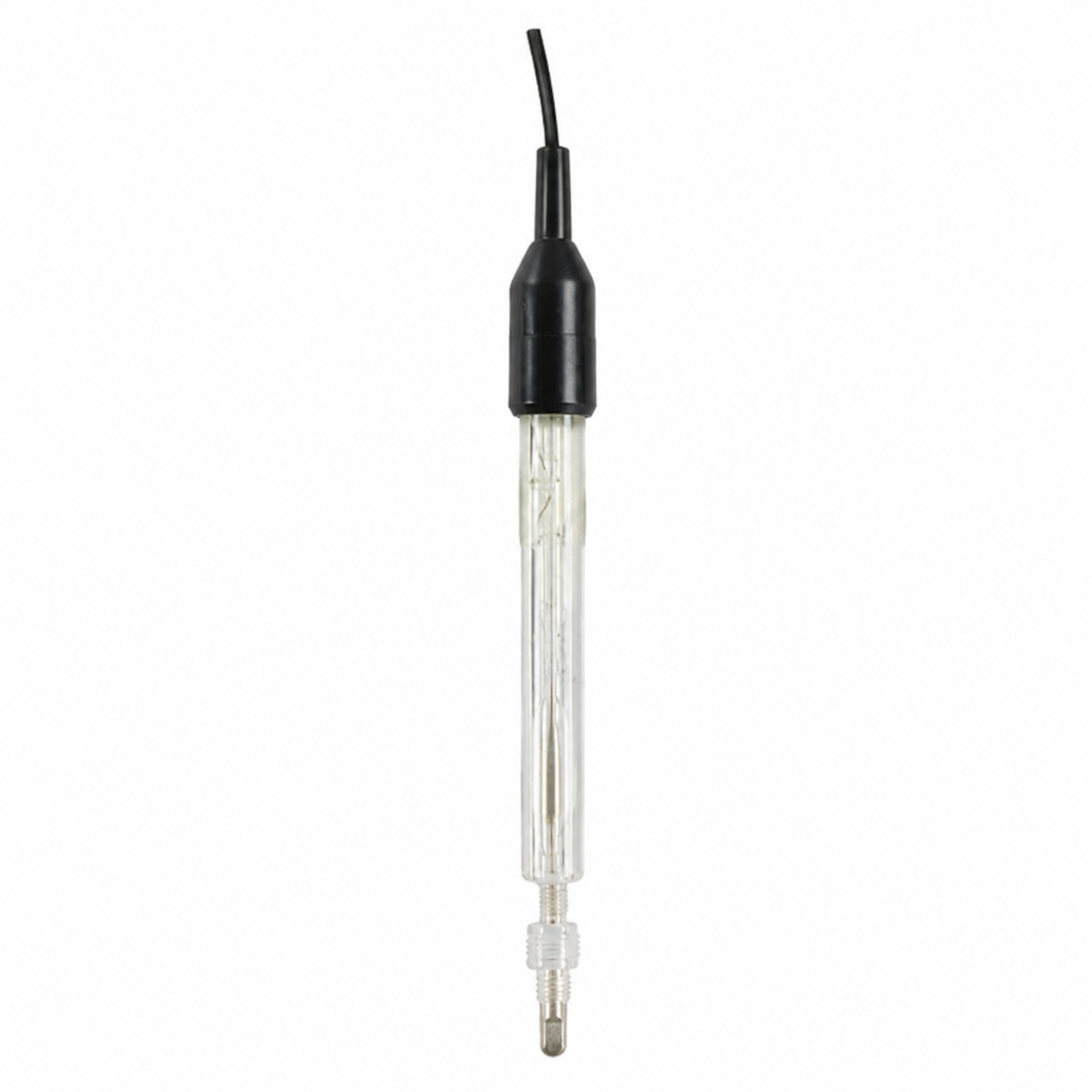

pH electrode for low-ion media
GE 104
- Measuring range: 0 … 14 pH, 0 … 80 °C
- for media with a conductivity of approx. 20 µS/cm and above
- movable ground-joint diaphragm
- Cable: 1 m

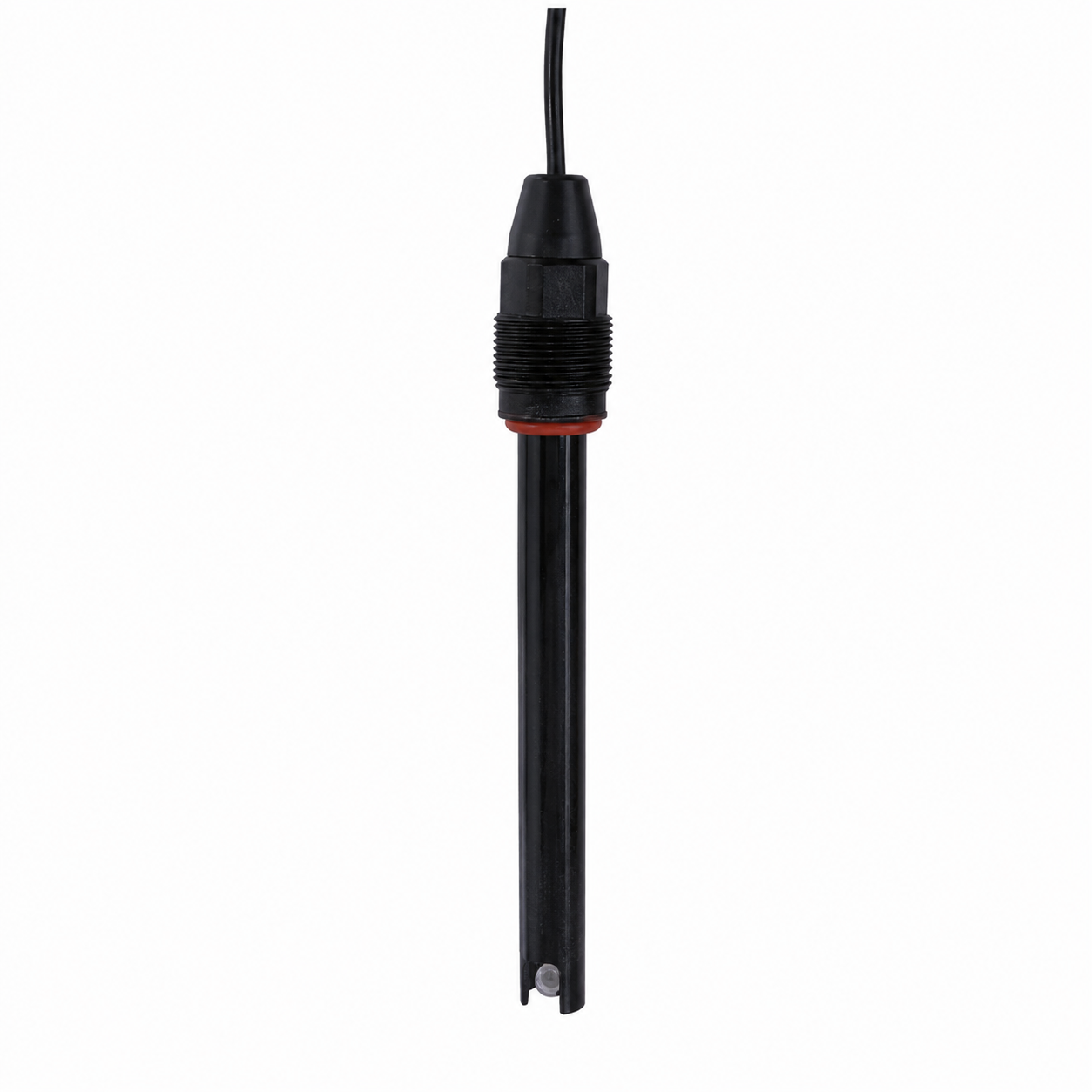

Low maintenance pH electrode
GE 108-BNC
- Measuring range: 2 … 11 pH, 0 … 60 °C
- Electrode shaft: PSU, Ø 12 mm x 120 mm
- Electrolyte: Gel electrolyte
- Cable: 2 m

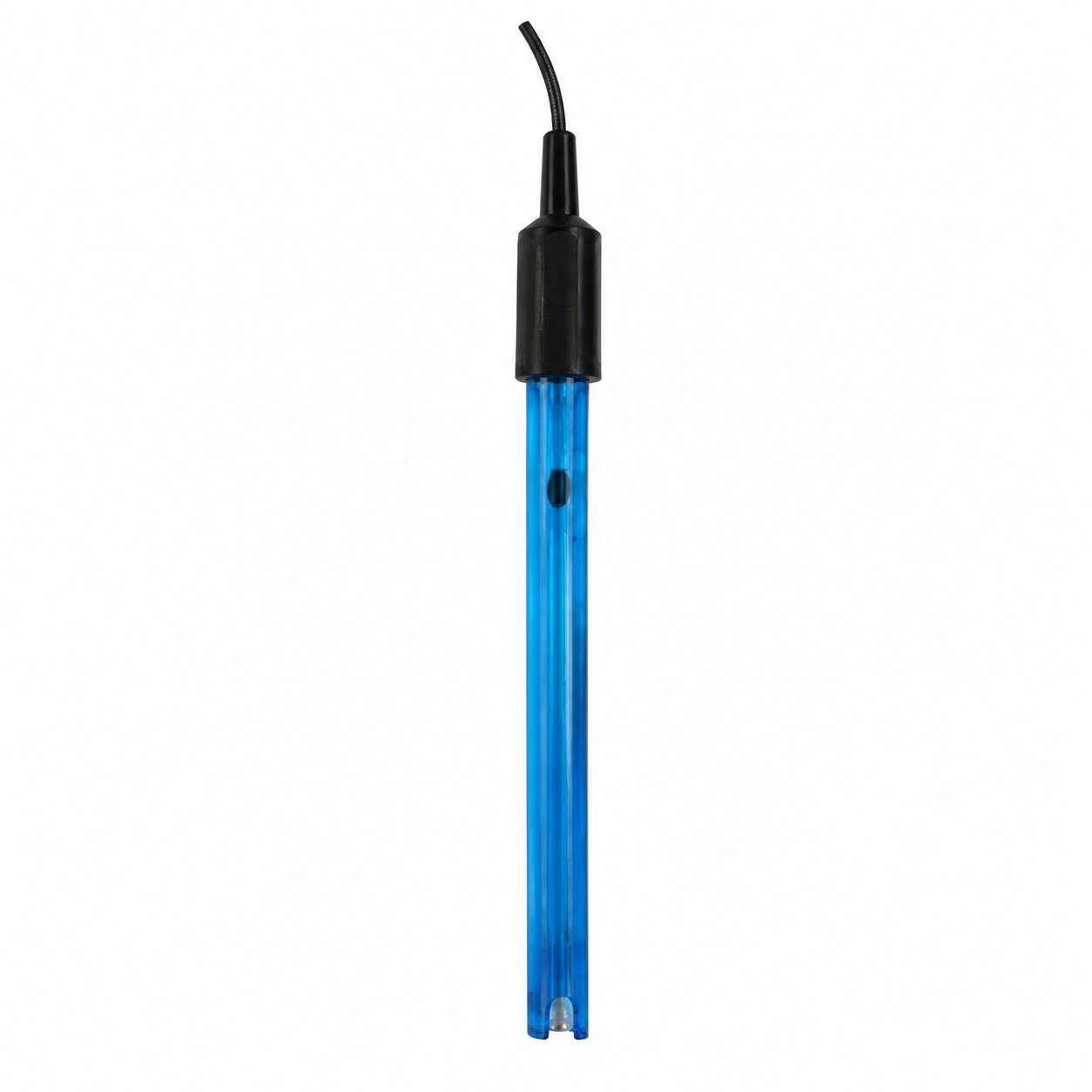

Low-cost universal pH electrode
GE 114-WD
- Measuring range: 0 … 14 pH, 0 … 80 °C
- Electrode shaft: PSU, Ø 12 mm x 120 mm
- Electrolyte: Gel electrolyte
- Cable: 1 m

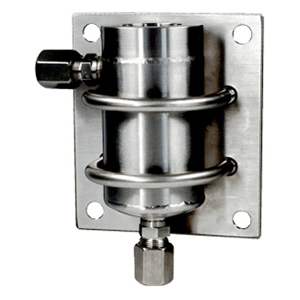

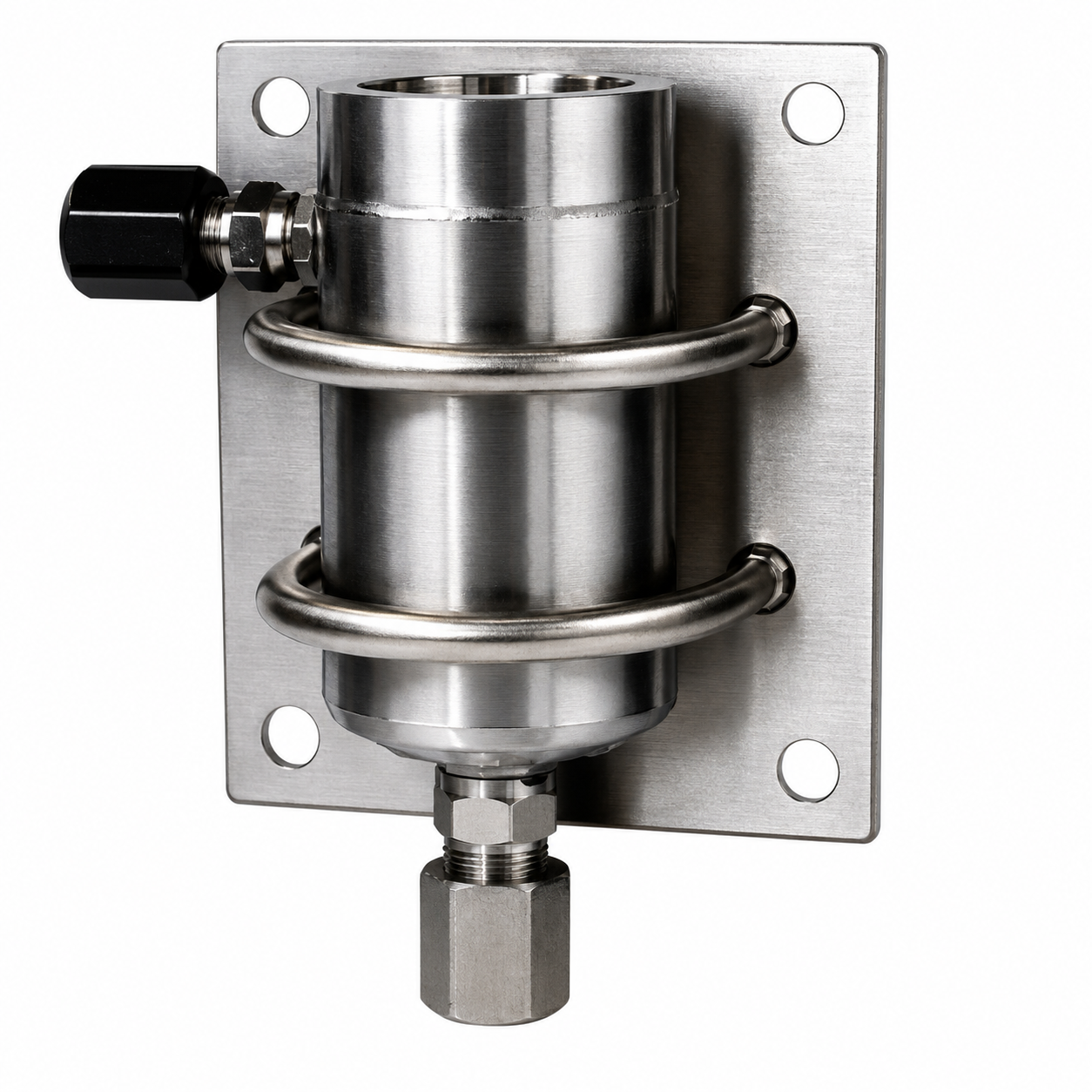

Flow-Through Vessel
DFG50
- up to 3 pH or ORP electrodes
- Material: 1.4571 stainless steel
- Process preassure: max. 16 bar
- Process temperature: max. 140 °C

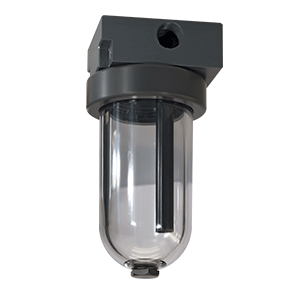

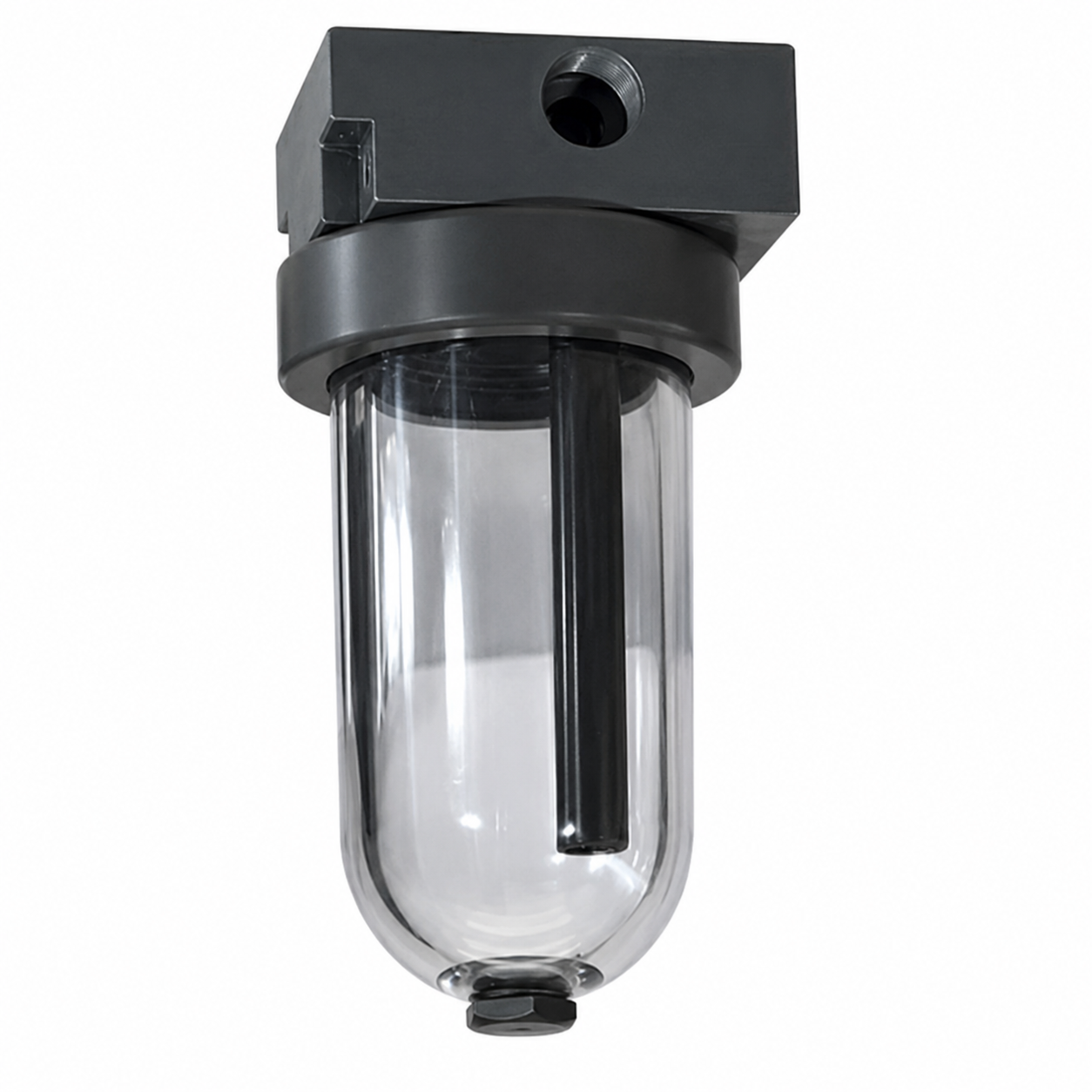

Flow-Through Vessel
DFG70
- up to 3 transducers with PG 13,5 process connection
- side connections with G1/2 thread
- Suitable for wall mounting

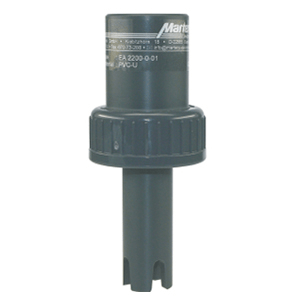

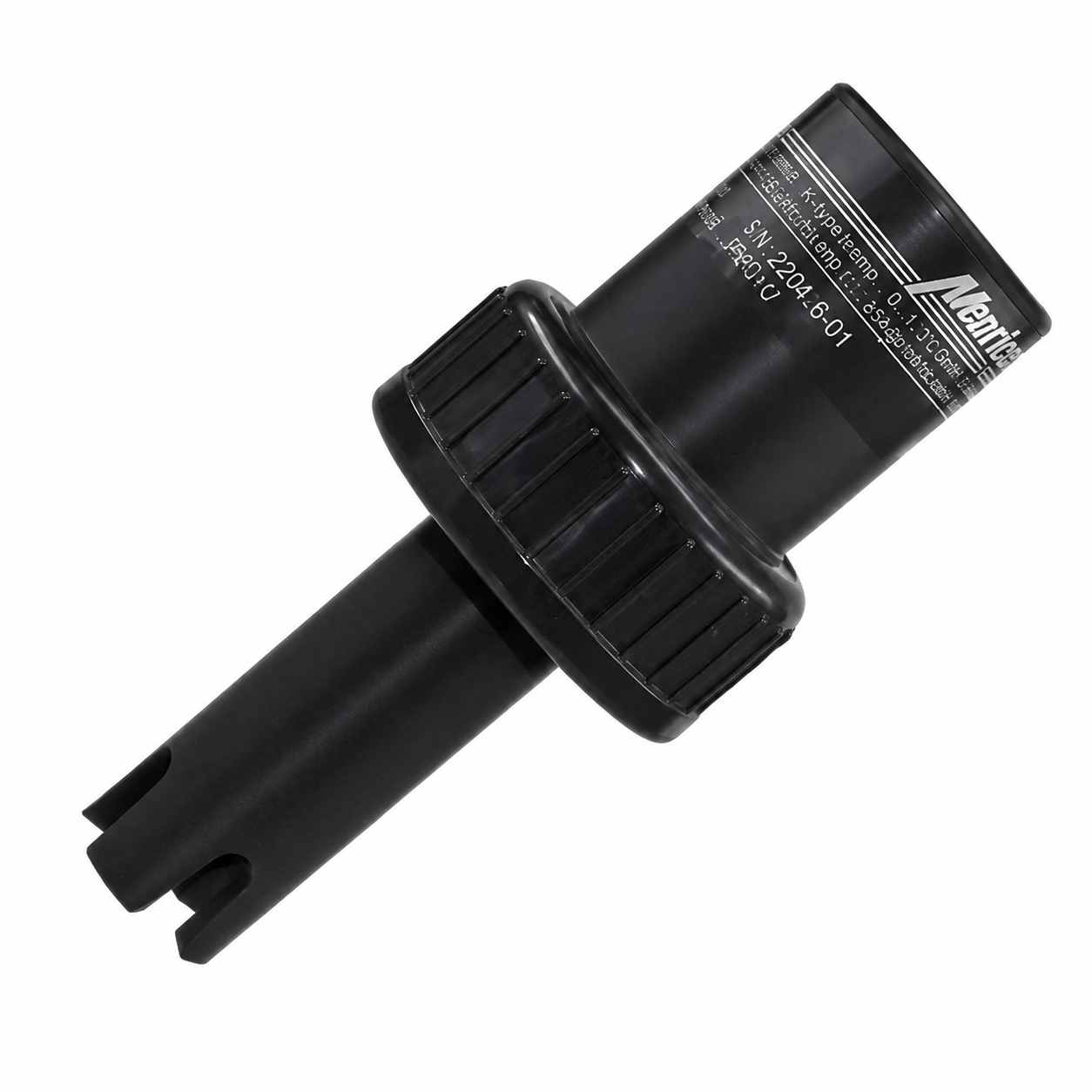

Integrated fitting
EA1200 EA2200
- Protection of the pH electrode
- For PVC-U standard fittings
- Head installation UNICON-pH

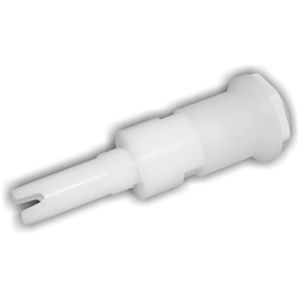

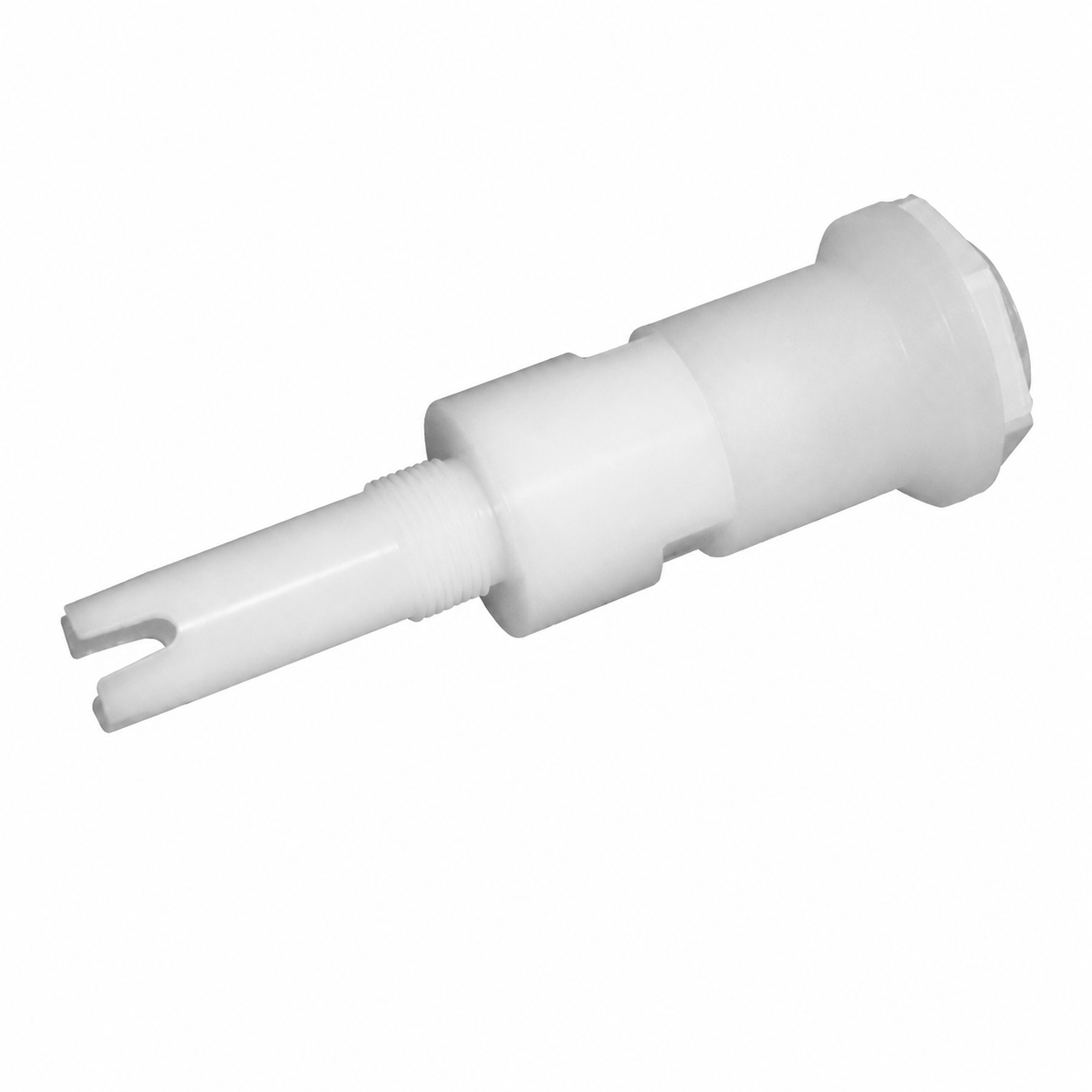

Screw-in fitting
EA1630 EA2630
- Protection of the pH electrode
- Pipe thread to DIN ISO 228
- Head installation UNICON-pH

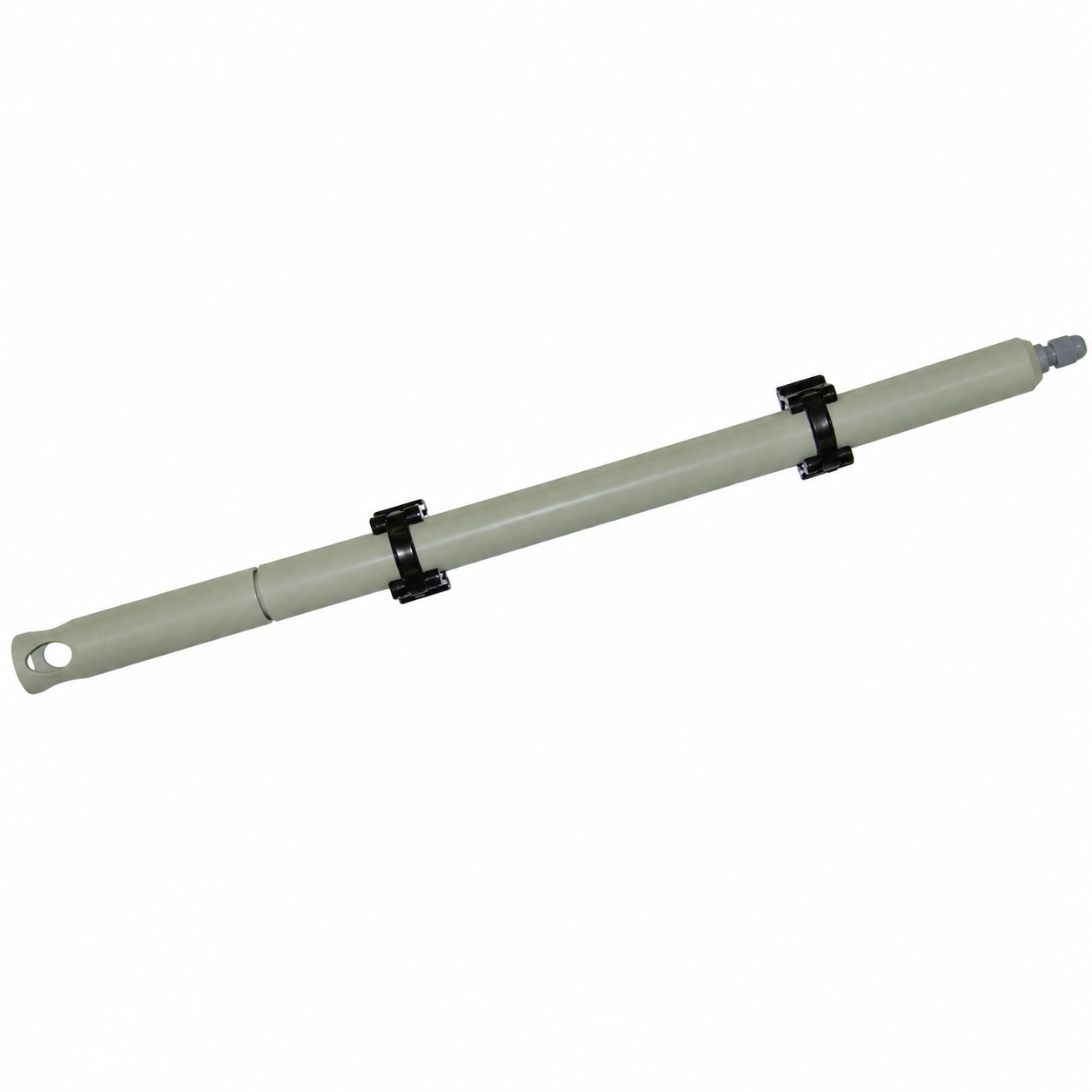

Immersion fitting
EA2090
- for pH or ORP electrodes
- for installation in ducts or tanks
- Wall, flange or anchor clamp mounting
- Wetting cal optional

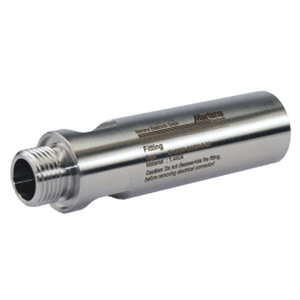

Screw-in fitting
EA2650
- Fitting stainless steel 1.4571
- Screw-in thread
- Viton® seal

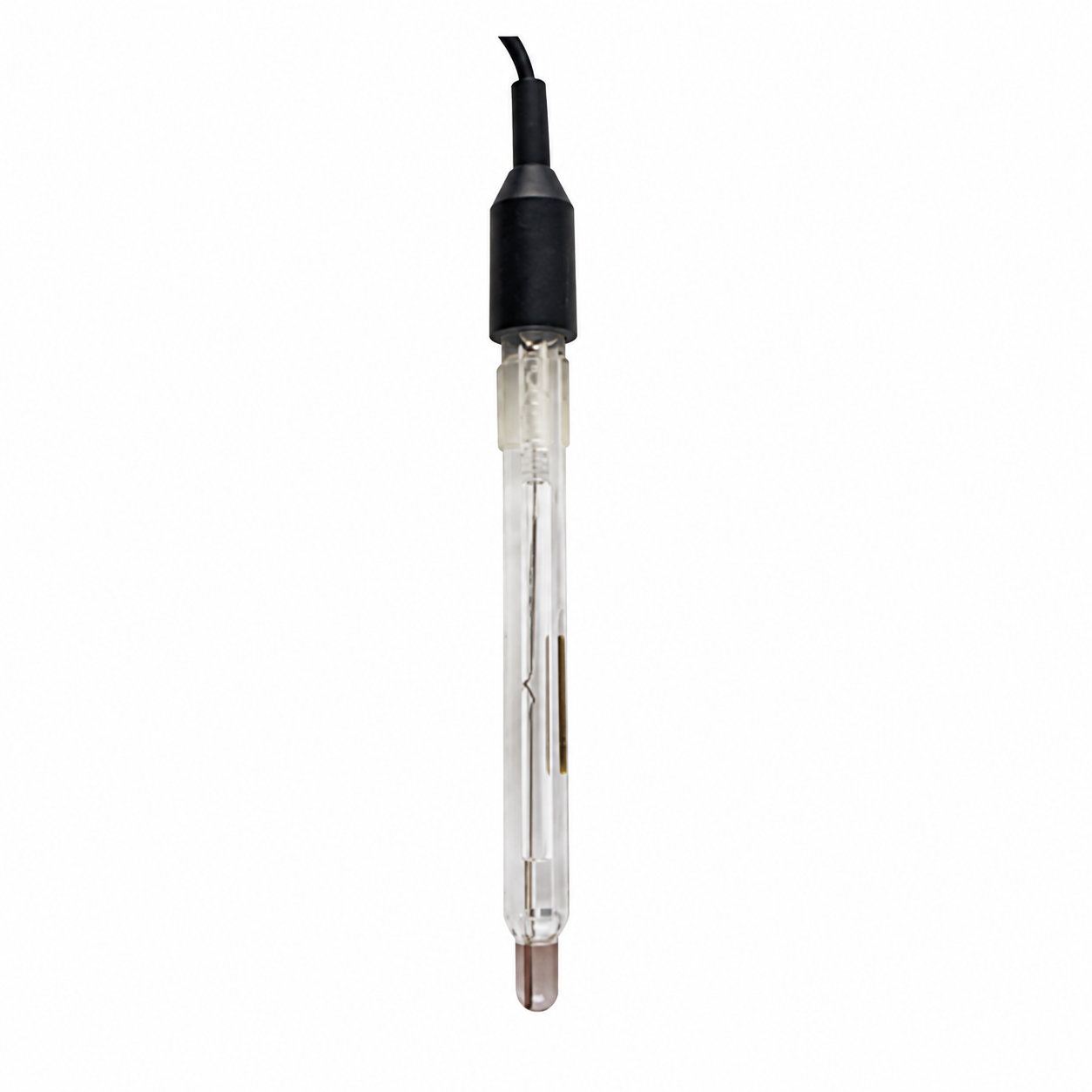

Chemical resistant pH electrode
GE 151-BNC
- Measuring range: 0 … 14 pH, 0 … 80 °C
- Chemical resistant glass shaft
- Electrolyte: 3 mol/l KCl
- Cable: 1 m

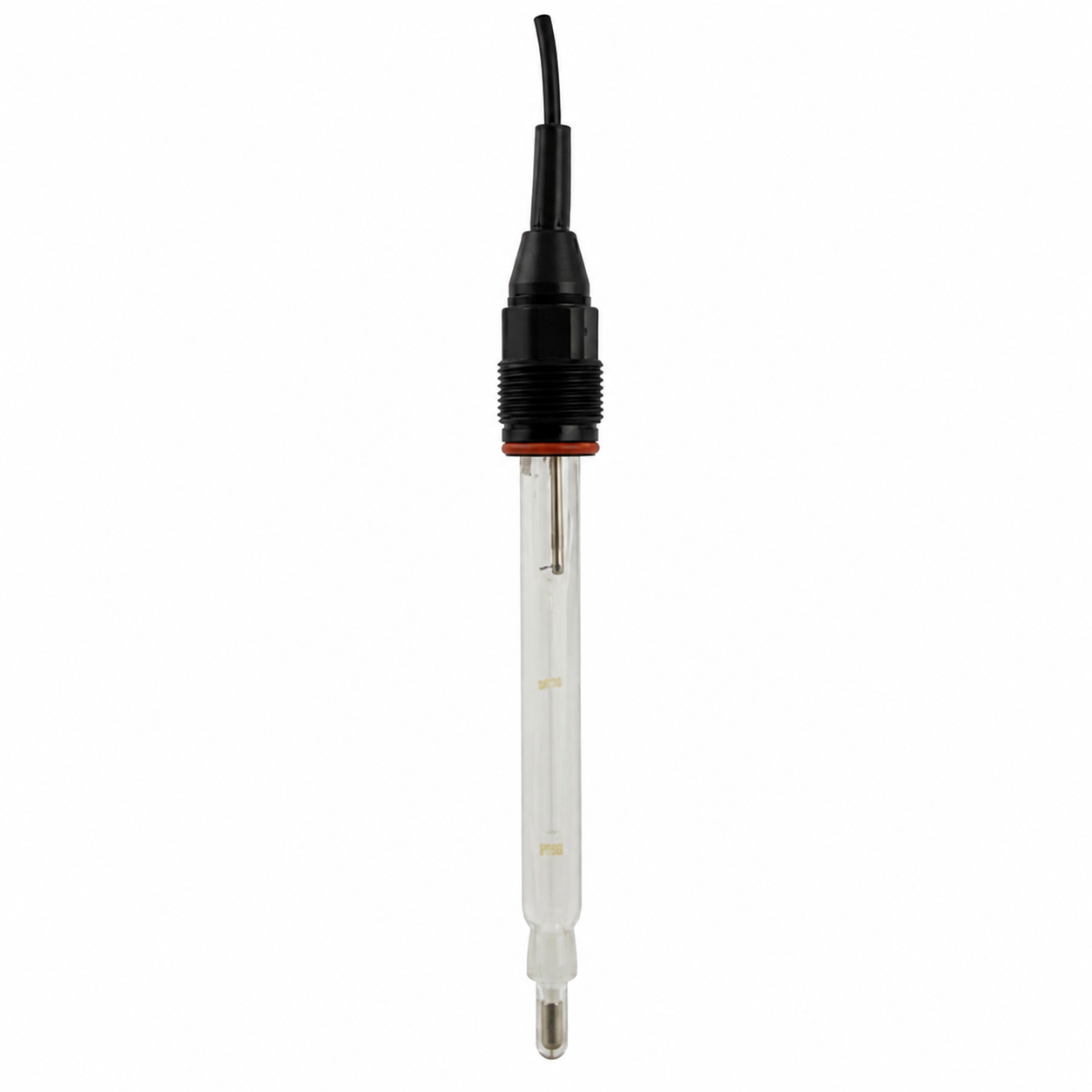

pH electrode with ground-joint diaphragm
GE 173
- Measuring range: 0 … 14 pH, 0 … 80 °C
- Electrode shaft: glass, Ø 12 mm x 120 mm
- for process and biochemistry, alkali-resistant
- Cable: 1 m

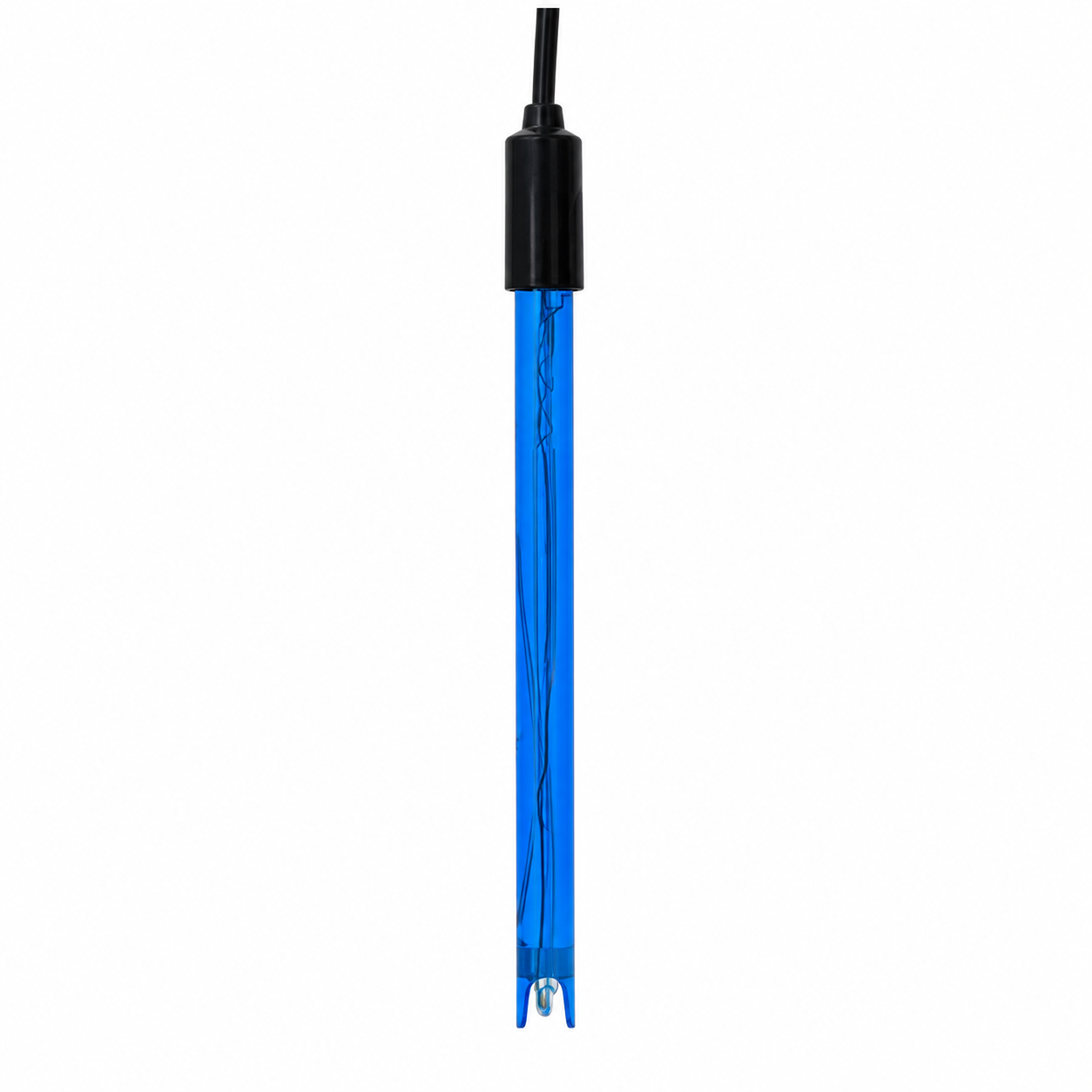

pH electrode with integrated Pt1000
GE 135
- Measuring range: 0 … 14 pH, 0 … 80 °C
- Integrated temperature sensor
- Electrolyte: Gel electrolyte
- Cable: 1 m or 2 m
pH combined electrode
AL70pH-00
- Standard pH electrode for measurement in aqueous solutions
- Process connection: PG13.5
- Electrical connection: S8 industrial plug

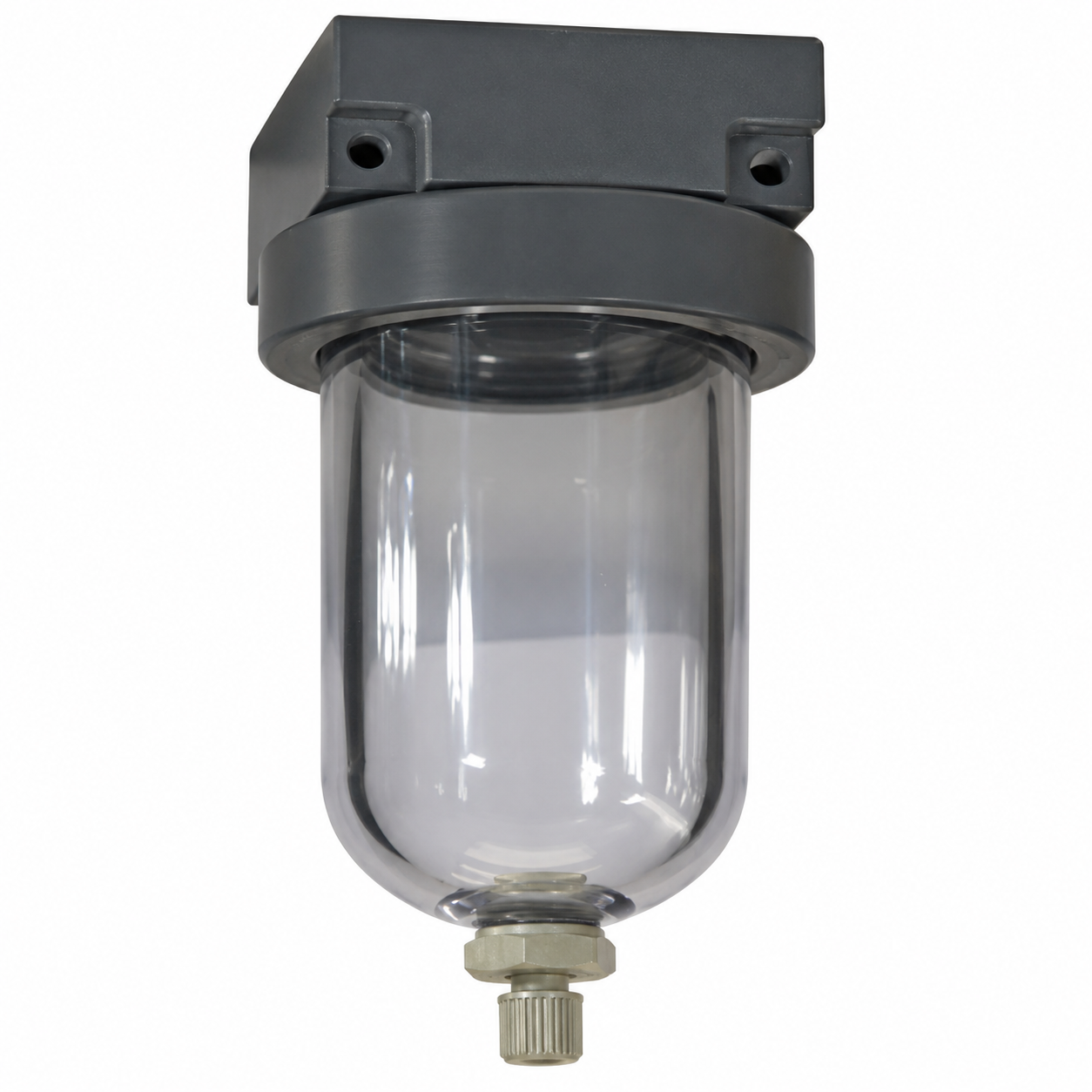

KCl-Reservoir
NFG70
- for autmated level monitoring
- Hose connection 4/6mm
- Suitable for wall mounting
pH combined electrode with Pt1000
EGA142-VP
- Standard pH electrode for measurement in aqueous solutions
- Process connection: PG13.5
- Electrical connection: S8 industrial plug
pH combined electrode with Pt1000
EGAT173-VP-X
- for heavily contaminated media (e.g. landfill leachate treatment)
- Good service life due to cut diaphragm
- Process connection: PG13.5
- Electrical connection: VarioPin industrial plug

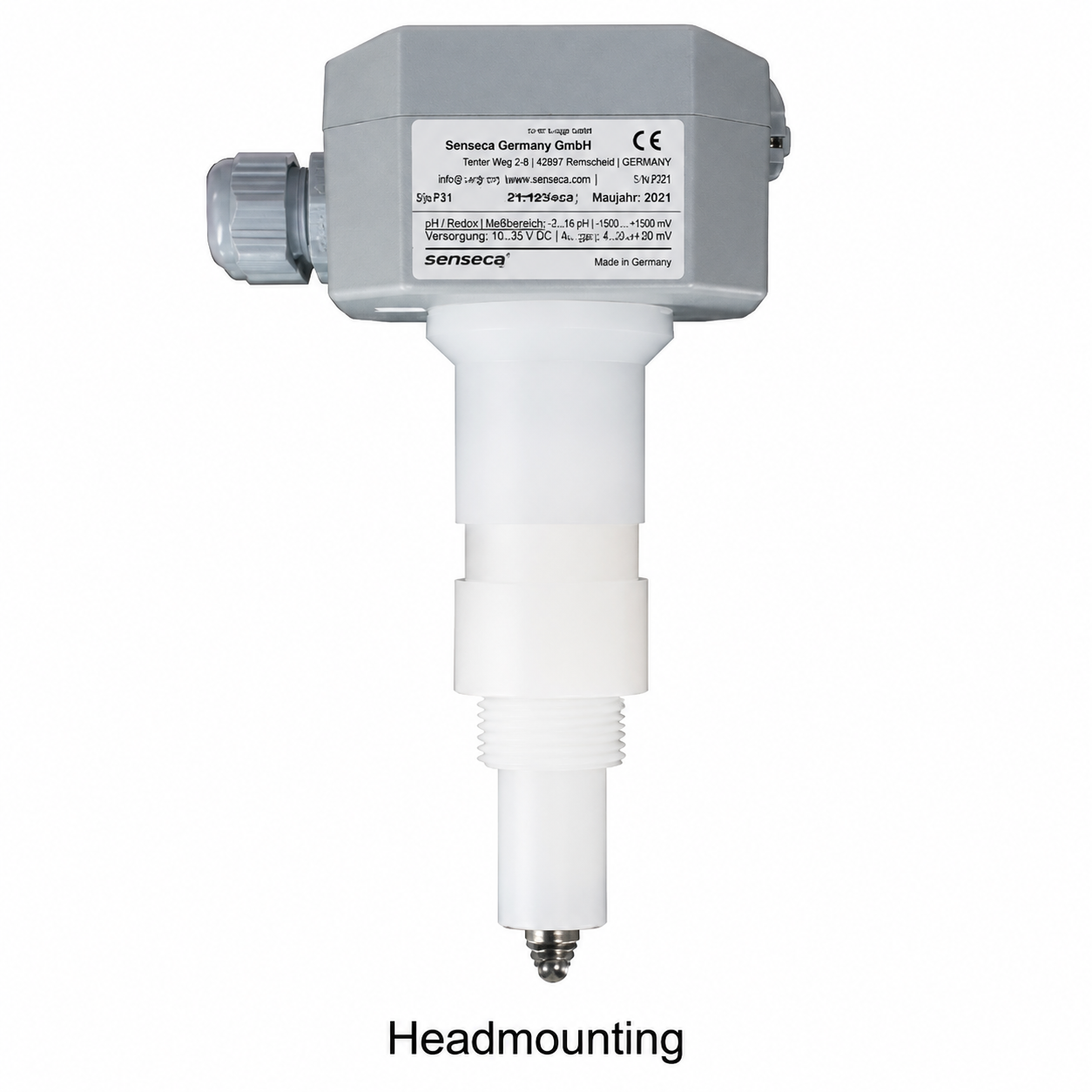

pH-head transmitter
pH40
- Measuring transducer or impedance converter
- up 100m transmitting range
- Optional: 4..20mA (-1..15 pH)
- for pH-electrodes with S7 connector
pH combined electrode
L9080
- for ion-poor media (e.g. ultrapure water, boiler feed water)
- Replaceable/refillable electrolyte by glass olive
- Process connection: PG13.5
- Electrical connection: S8 industrial plug

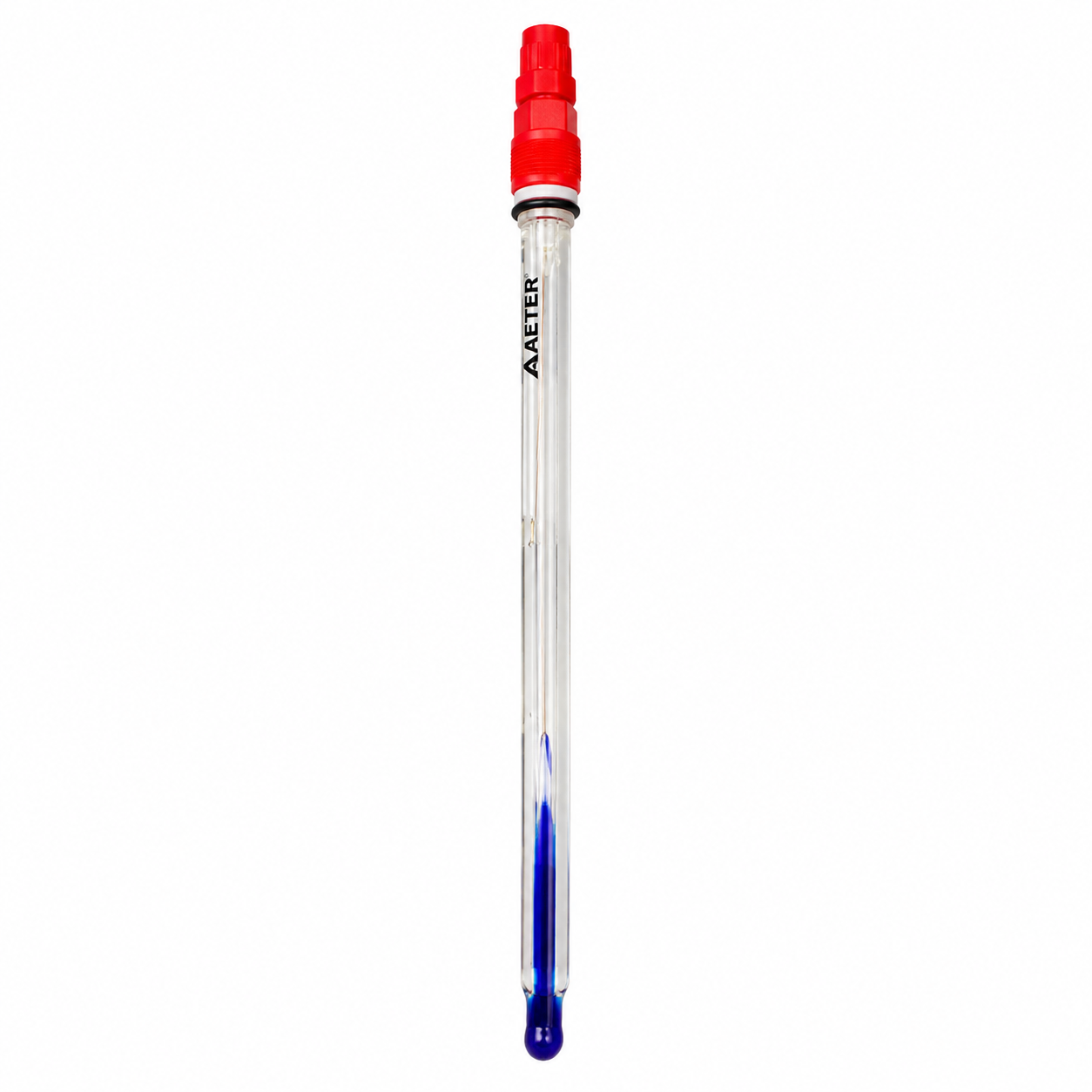

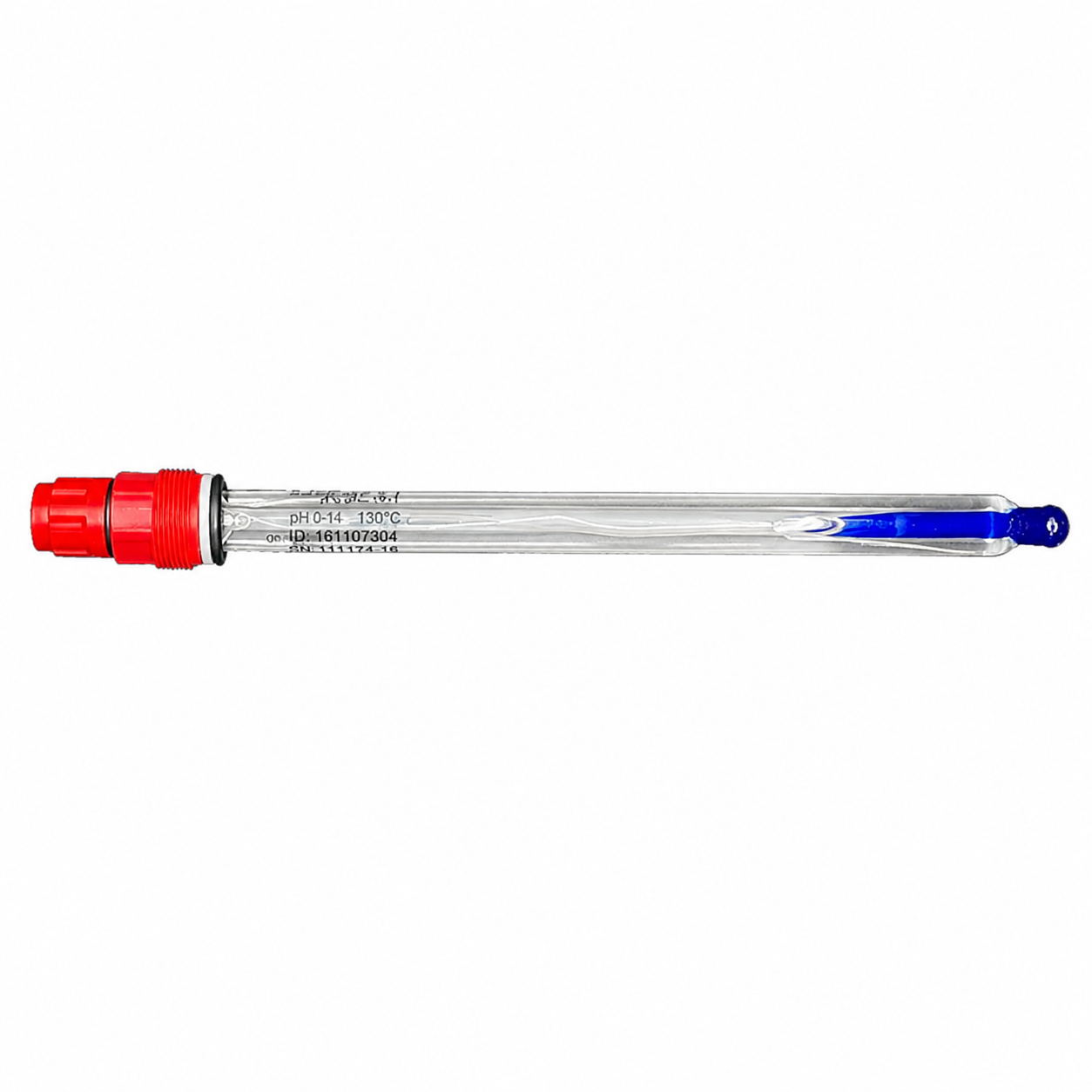

pH combined electrode
pH141
- for use in aggressive media (e.g. scrubbers)
- 240mm shaft length for use in containers
- Process connection: PG13.5
- Electrical connection: S8 industrial plug

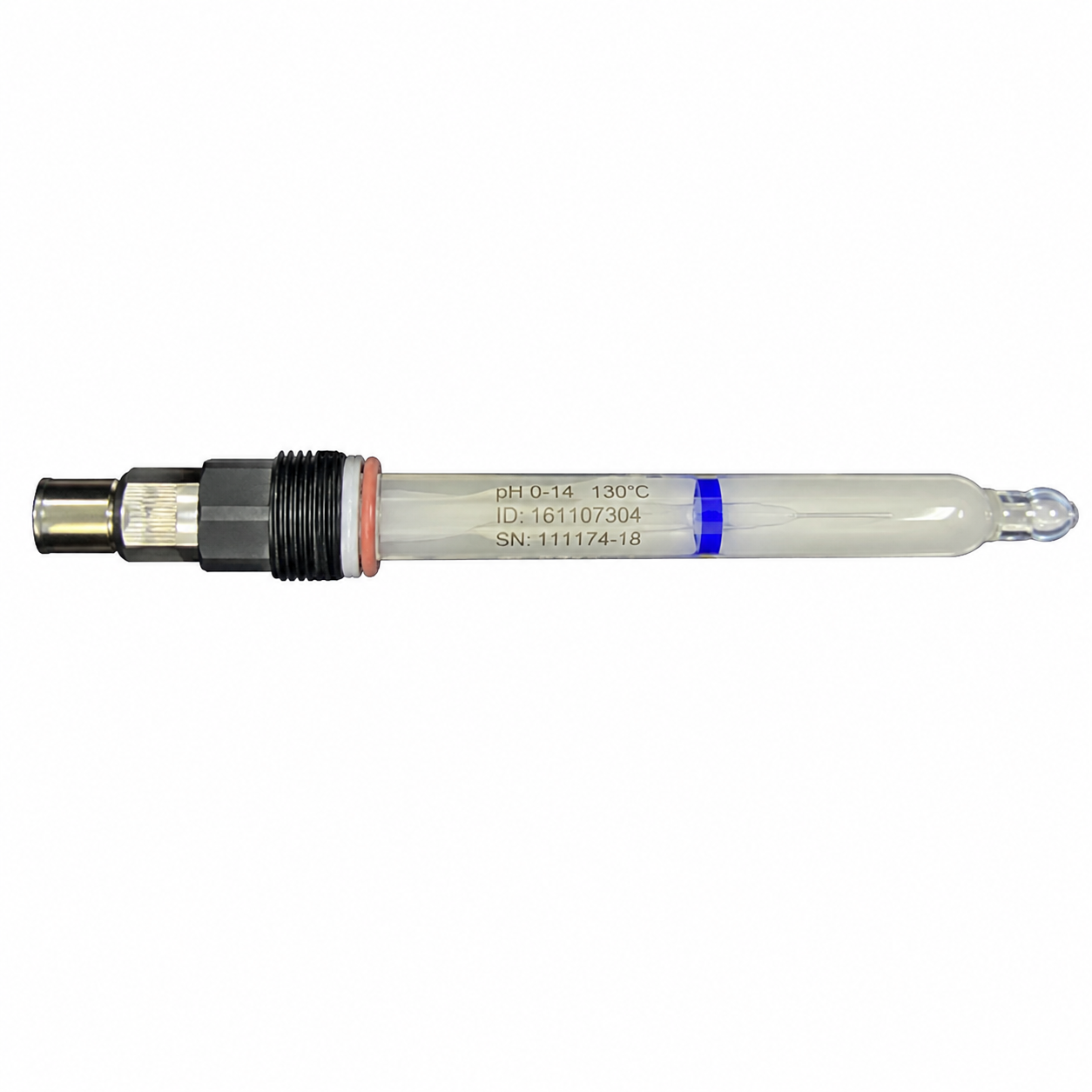

pH combined electrode with Pt1000
pH211
- for heavily contaminated media (e.g. landfill leachate treatment)
- Very good service life due to double-chamber design
- Process connection: PG13.5
- Electrical connection: VarioPin industrial plug

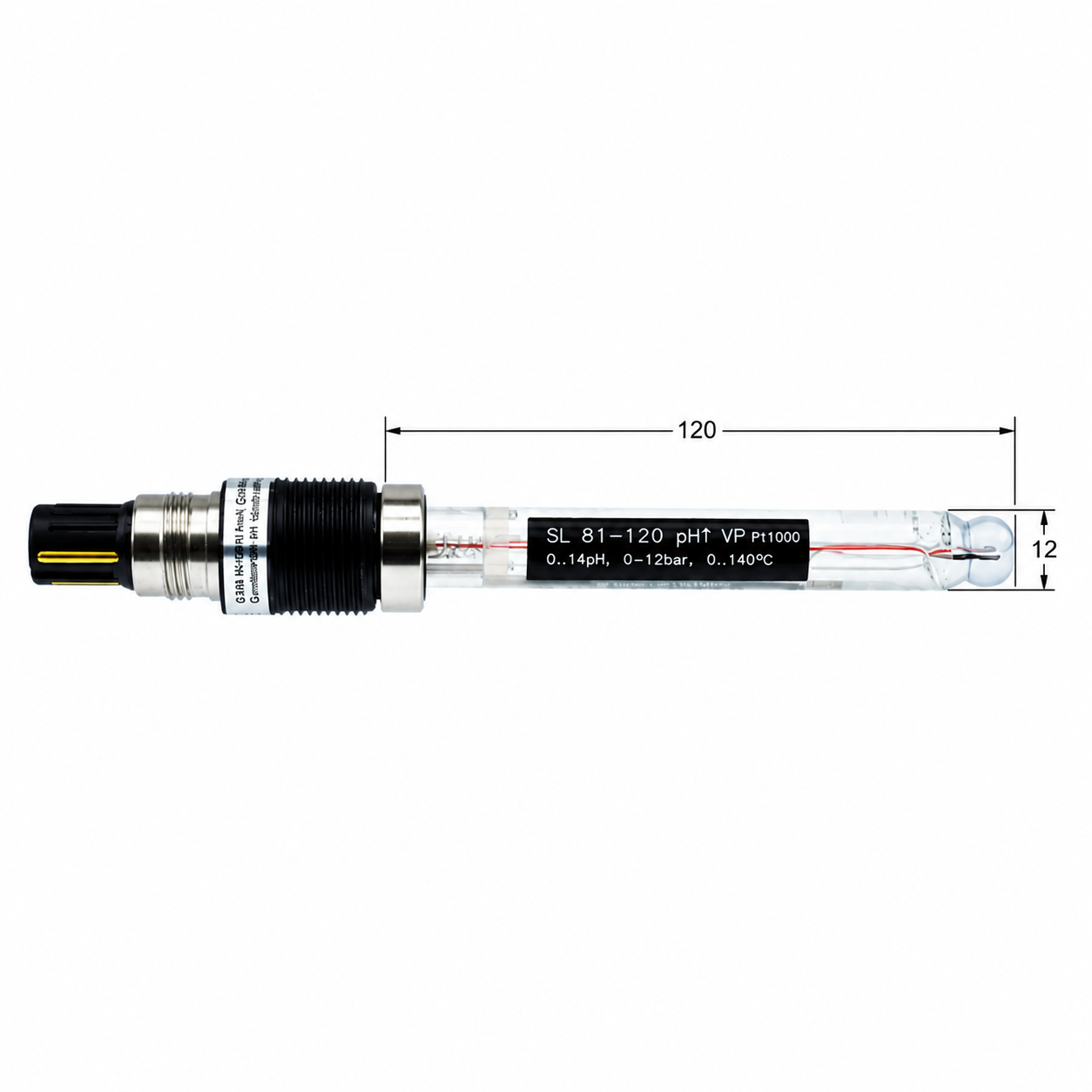

pH combined electrode with Pt1000
SL81-120pHT-VP
- Sterilizable, for operating temperatures >80°C (SIP/CIP processes)
- Process connection: PG13.5
- Electrical connection: VarioPin industrial plug
Accessories for pH Measurement
S7, KVP
- Connection cable S7, KVP
- technical Buffer, Cleaning solutions
