Piston valve design

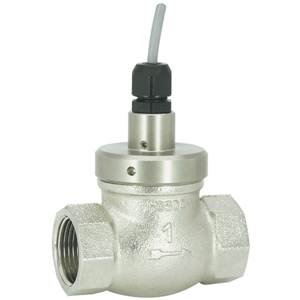

Flow switch
FF
- Fixed switching value ex works
- Reed switch (N.C or N.O)
- Nominal diameter DN 10 to DN 50
- Red brass material

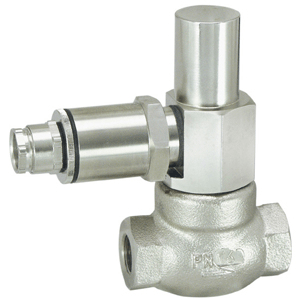

Flow switch
G-…GR
- Piston functional principle
- Reed switch
- Nominal widths DN 10 to DN 15
- Red brass material

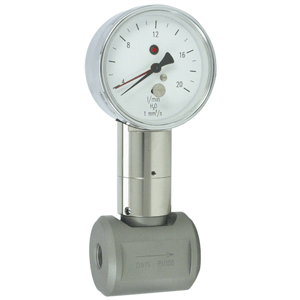

Flow switch
TZ1-…GK
- Piston functional principle
- Microswitch
- Nominal widths DN 15 to DN 50
- Stainless steel material

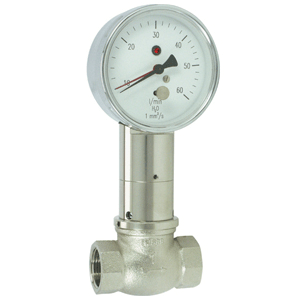

Flow switch
TZ1-…GR
- Piston functional principle
- Microswitch
- Nominal widths DN 10 to DN 80
- Brass material

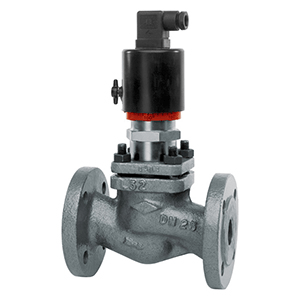

Flow switch
VD-…FG
- Piston functional principle
- Reed switch
- Flange connection DN 15 to DN 300
- Grey iron material
Flow switch
VD-…FK
- Piston functional principle
- Reed switch
- Flange connection DN 15 to DN 150
- Stainless steel material

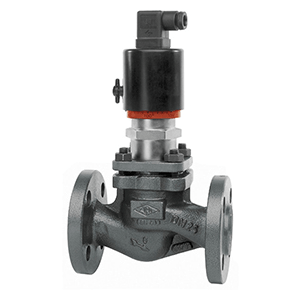

Flow switch
VD-…FT
- Piston functional principle
- Reed switch
- Flange connection DN 15 to DN 300
- Cast steel material
Flow switch
VD-…GK
- Piston functional principle
- Reed switch
- Nominal widths DN 15 to DN 50
- Stainless steel material

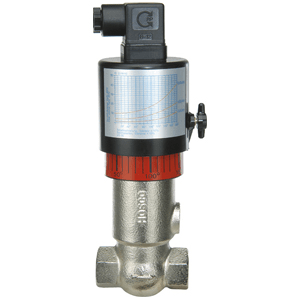

Flow switch
VD-…GR
- Piston functional principle
- Reed switch
- Nominal widths DN 10 to DN 80
- Red brass material

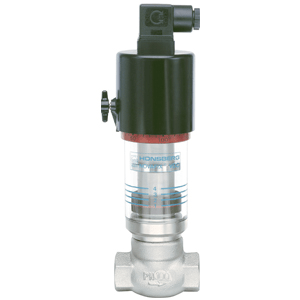

Flow switch
VDO-…GR
- Piston functional principle
- Reed switch
- Nominal widths DN 10 to DN 80
- Red brass material

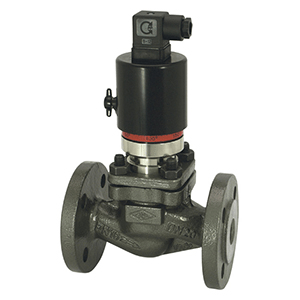

Flow switch
VM-…FG
- Piston functional principle
- Microswitch
- Flange connection DN 15 to DN 200
- Grey iron material

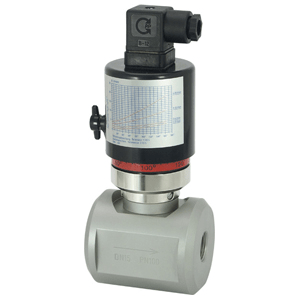

Flow switch
VM-…GK
- Piston functional principle
- Microswitch
- Nominal widths DN 10 to DN 80
- Stainless steel material

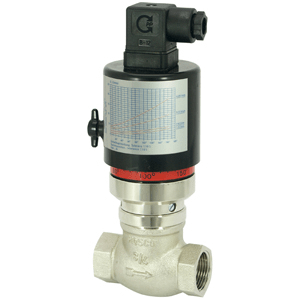

Flow switch
VM-…GR
- Piston functional principle
- Microswitch
- Nominal widths DN 10 to DN 80
- Brass material
